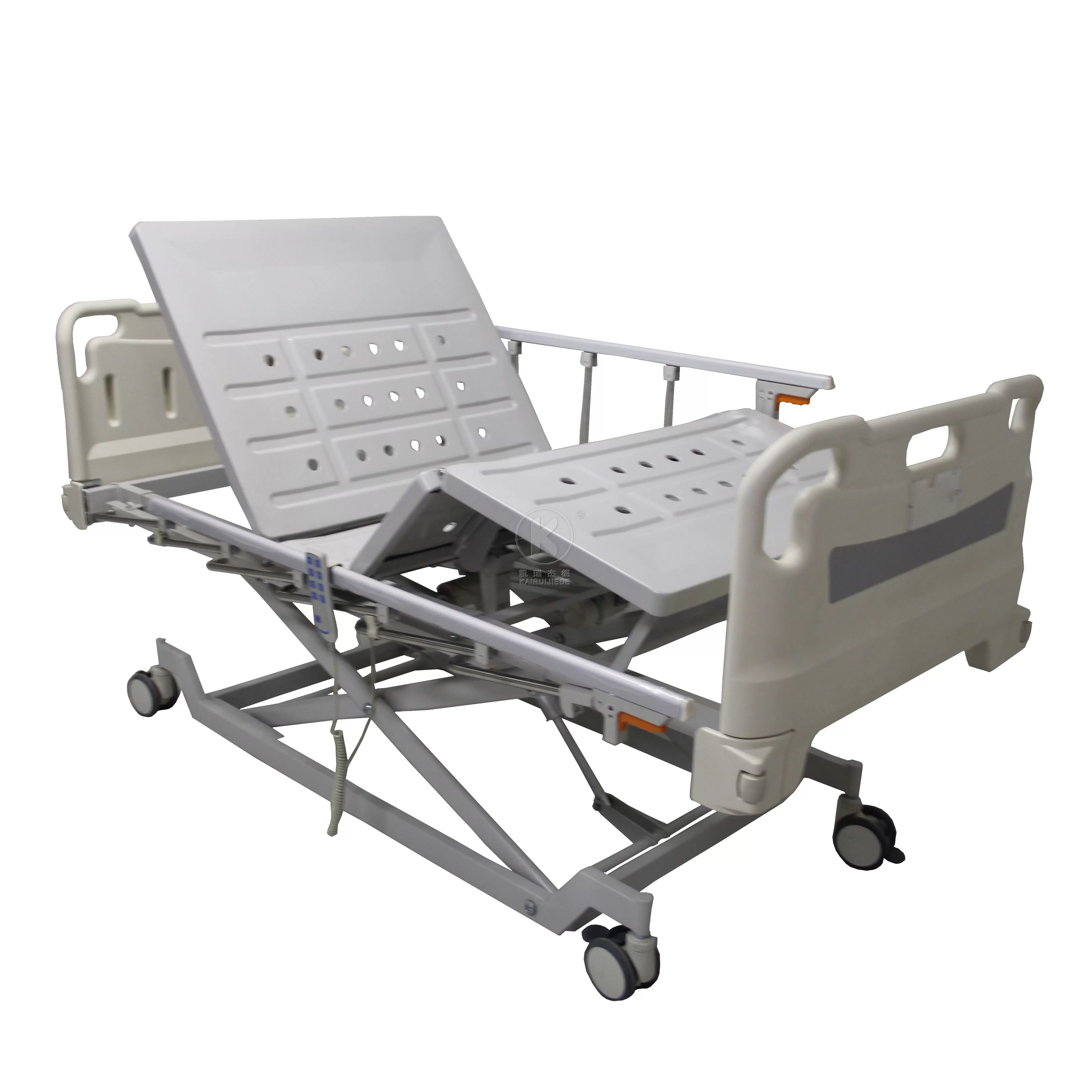

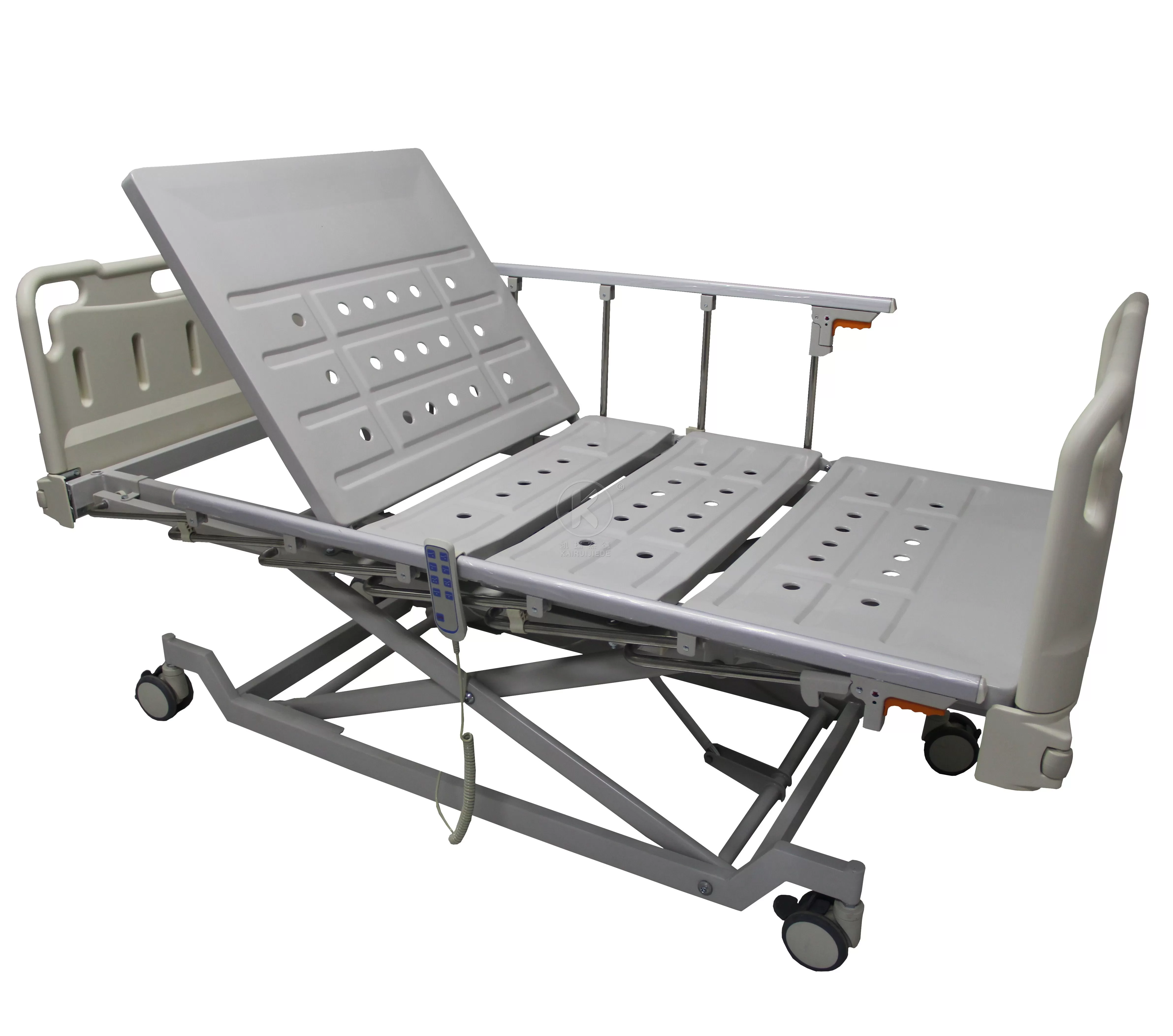

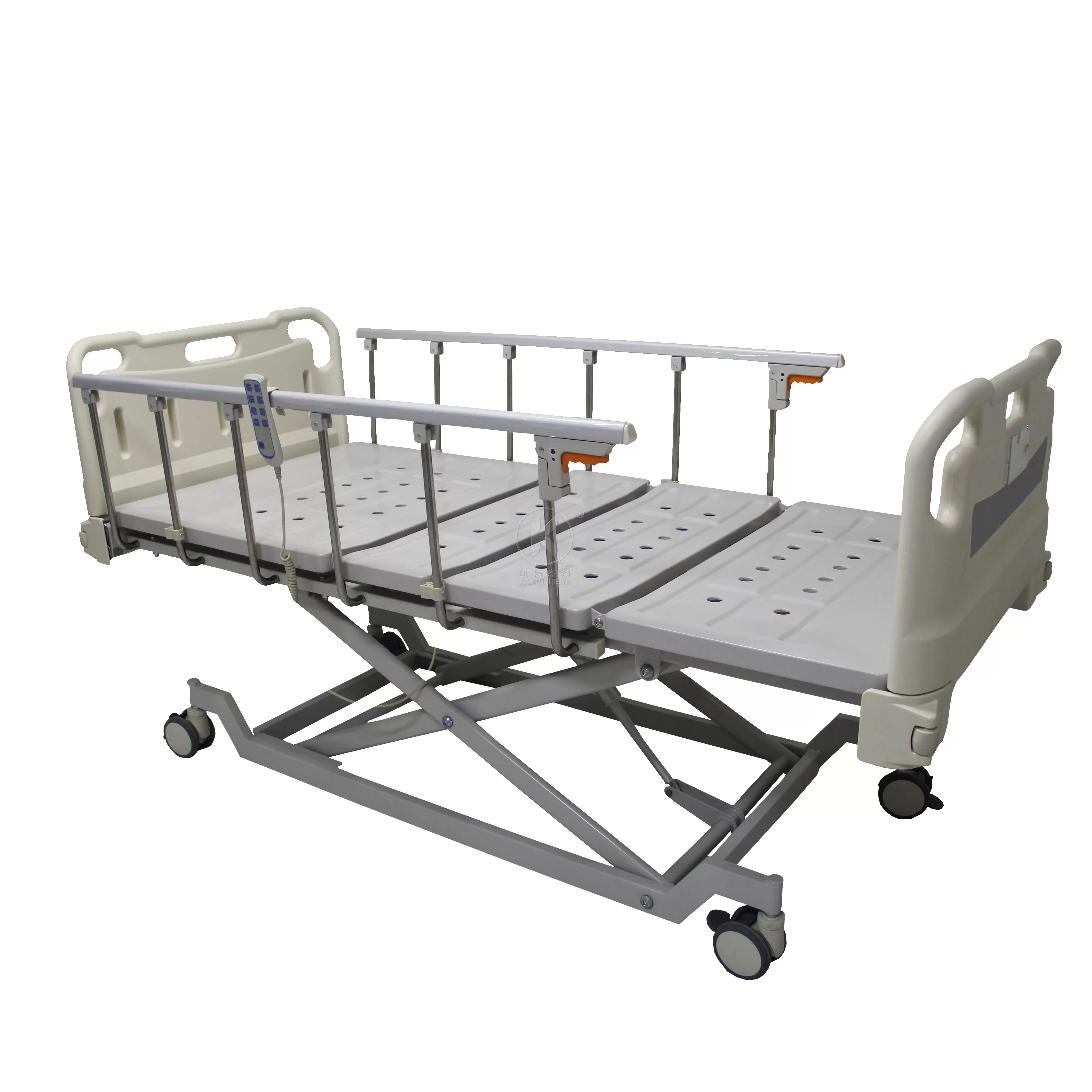

Electric 3 function X model medical bed

Product Specification

●Overall size:2140*960*320-750 mm

●Bed surface size:1940*900mm

●Backrest angle: 0-75°（±5°)

●Leg section angle:0-35°（±5°)

●Height Adjustment:400-700mm

●Bed surface:Integral stamping bed surface

●Head&Foot-board: ABS material

●Side rail: 6 bar 470mm Aluminum material stainless steel stand

●Castor:125 mm two-sides castors with independent brake

●Control system:CE certified motor

●Maximum working load:260kg

Accessories

●Mattress:6cm/8cm/10cm/12cm

●IV pole:4 hooks/3 hooks

●Dining table: ABS Material

Certification Information

The page mentions a CE-certified motor. To enhance marketability, especially for international exports, explicitly stating full product certifications is crucial.

CE Marking: The product complies with the European Medical Device Regulation (MDR) or relevant directives, bearing the CE mark for sale in the European Economic Area.

ISO 13485: Manufactured in a facility with a Quality Management System certified to ISO 13485:2016 for medical devices.

FDA Registration: The manufacturing facility is registered with the U.S. Food and Drug Administration (FDA), and the product is listed per FDA regulations.

Other Regional Certificates: Products can also meet the standards of other markets (e.g., UKCA, Health Canada, TGA Australia) upon request or through authorized distributors.

Applications

Highlighting specific use cases can help customers visualize the bed's utility. Here are descriptions for key medical environments:

General Hospital Wards & Patient Rooms: Ideal for long-term patient care, providing comfortable positioning, easy height adjustment for patient transfers, and integrated safety features like side rails.

Intensive Care Units (ICU) & High Dependency Units (HDU): Suitable for critical care with its robust 260kg capacity, precise positioning to assist with patient management, and compatibility with various medical accessories (IV poles, monitor brackets).

Post-Anesthesia Care Units (PACU) & Recovery Rooms: Facilitates smooth recovery with easy backrest and height adjustments, helping medical staff monitor patients comfortably after surgery.

Dental & Outpatient Surgical Clinics: The electric X-model design and low minimum height (320mm) provide easy and safe patient access, particularly beneficial for elderly or mobility-impaired patients in clinical settings.

Emergency & Ambulance Transport (Specialized Variants): Note: Standard hospital beds are not for ambulances. Lightweight, ruggedized versions with quick-release mechanisms and secure locking castors are designed specifically for emergency transport vehicles.

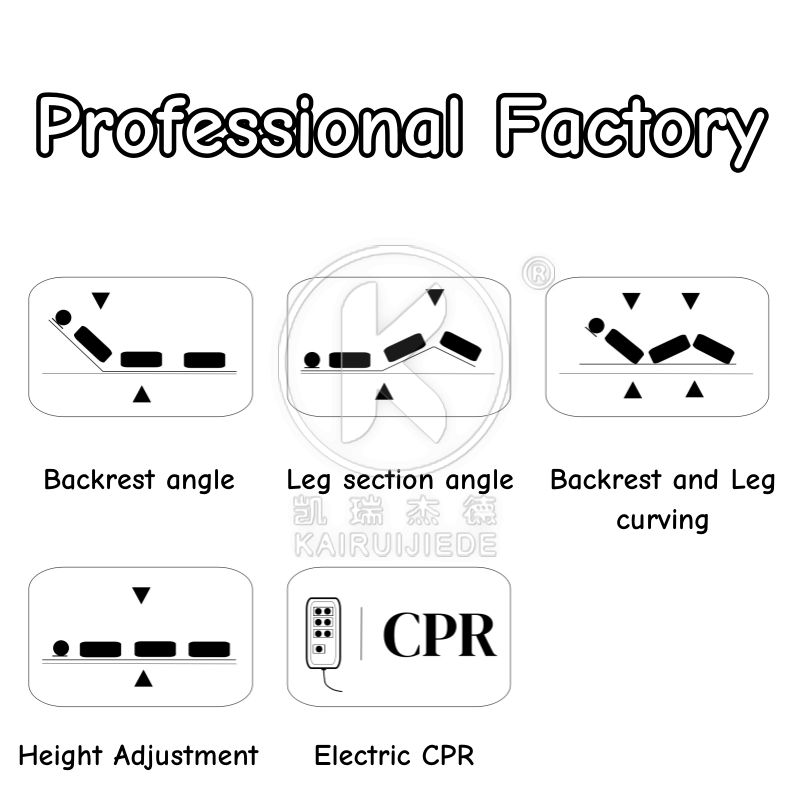

Poduct Function

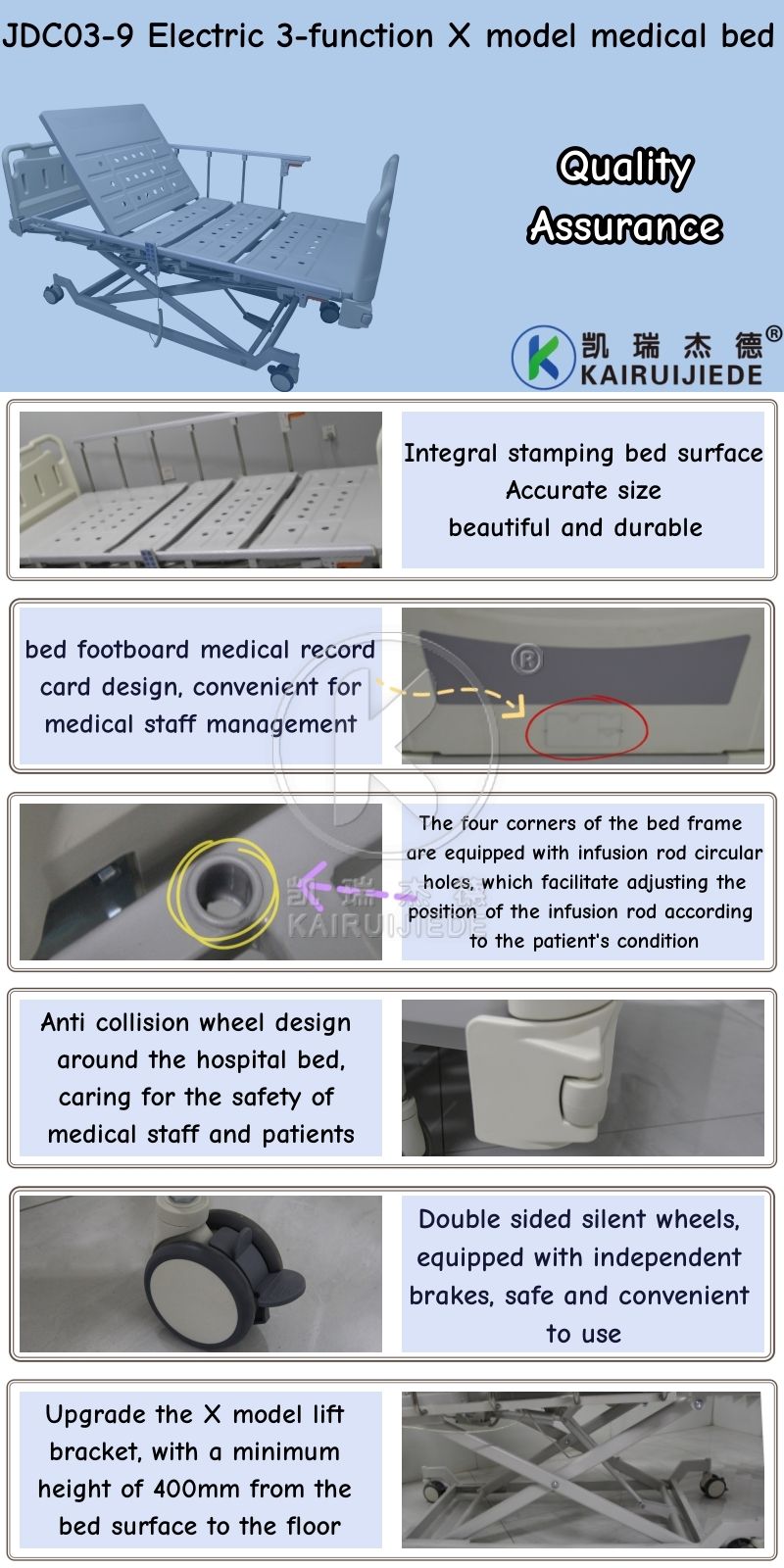

Product Details
